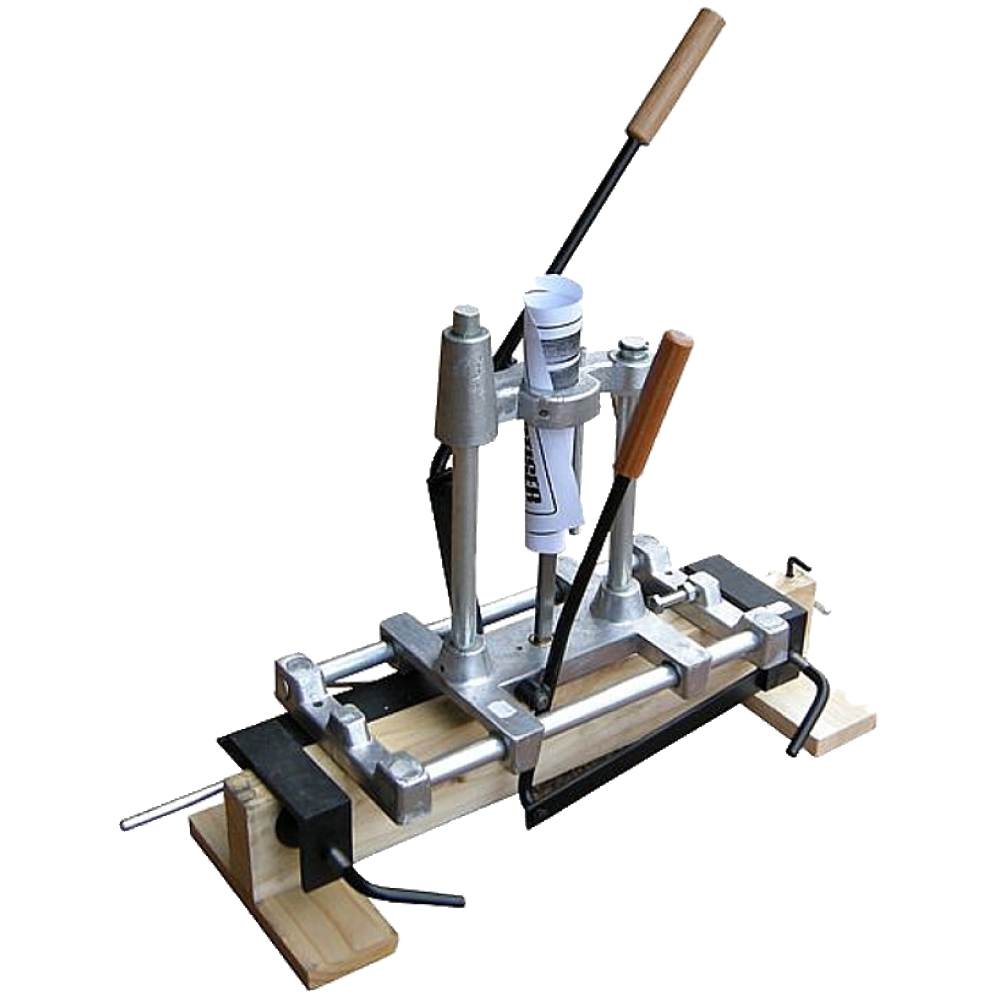

Lock mortising attachment
Jig to be used with an electric drill to bore out a mortise to fit a door lock.
Application:
The jig is clamped onto a door to cut a mortise for the fitment of a door lock.
A drill is attached to the jig with the following requirements:
- The chuck needs to be removed to expose the 20UNF thread.
- The drill will be clamped on the collar (ø46mm).
- The drill will be part of the jig and will thus be a semi-permanent addition.
The cutting length and depth of cut can be adjusted to comply with the demands of
various door lock sizes. The standard cutter supplied with the jig is a Ø17mm.
We recommend using a drill with low speed torque.
For example a rotary drill without percussion having 20 UNF thread.
Accessories and spare parts for the EG1:
-
Grub screw M6x12mm -
Grub screw M6x25mm -
Handle bent -
Handle straight -
Hook -
Long guide pillar -
Long link -
Medium guide pillar -
Set of bushes -
Shaft with Ø17mm MAD bit -
Shafts -
Short connecting bar -
Short guide pillar -
Short link -
Spare clamp bolt for clamp assembly -
Spare pressure pad with pin for clamp assembly -
Bushes long -
Bushes short -
Wood stand -
Allen key 6mm -
Bearings and bushes -
Castings – end pieces -
Casting – middle piece -
Casting – main body (H casting) -
Clamp assembly -
Clamp pad and bolt assebly -
Drill jig
