Size: M11 – M14
Diameter: 5 0mm
Recommended Drill Size: 6.0 mm
Shank: 6.0mm Square Shank

Application:

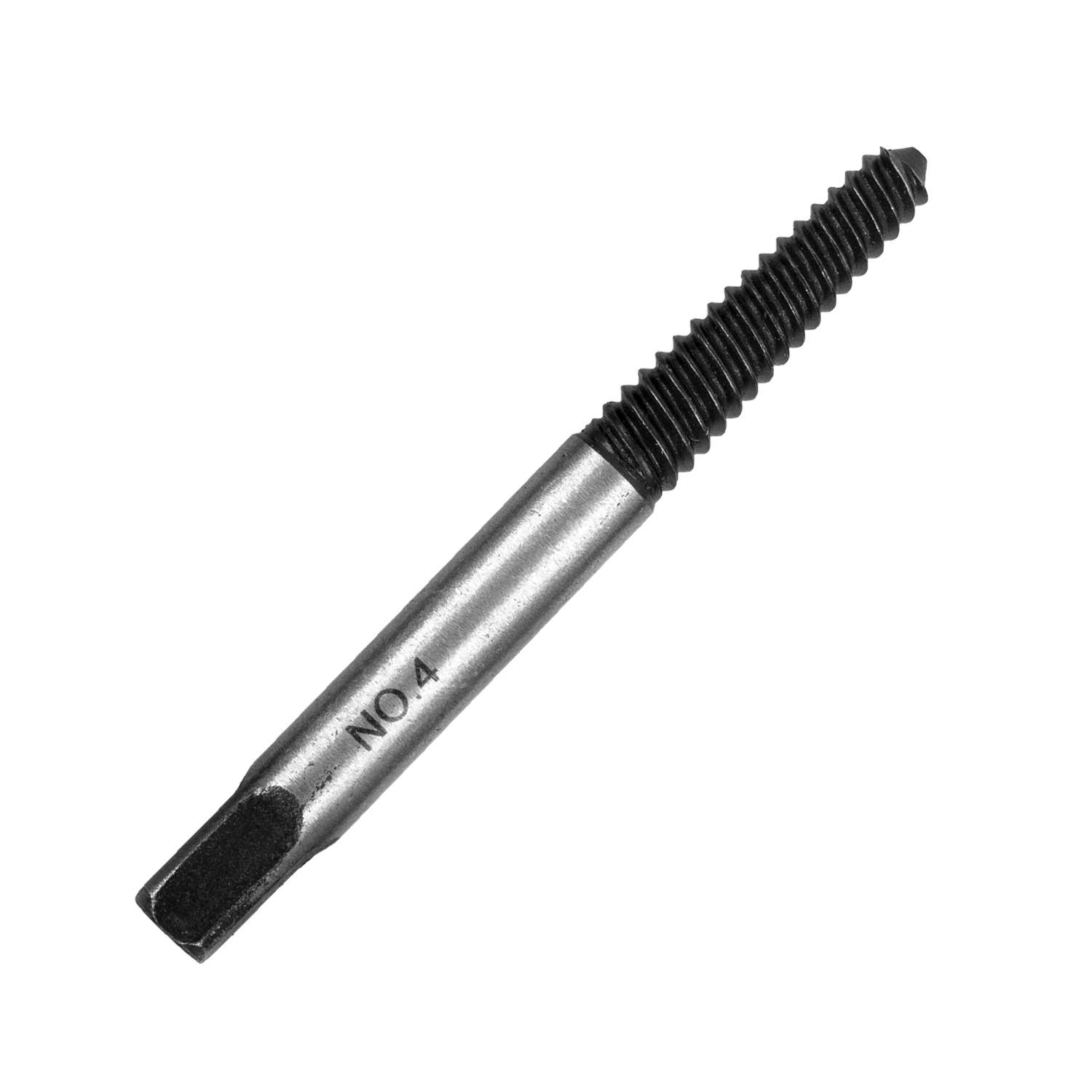

The Tork Craft Screw Extractor is for the removal of broken bolts and studs,
made of carbon steel. Determine the size of the bolt and the desired
extractor size, use a file and flatten the broken bolt surface, usually
bolts that broke are left with an uneven surface.

Locate the center on the flattened surface and mark with a center punch.
Drill a pilot hole, start off with a small diameter and increase to the
recommended drill size depending on the extractor size in use.

Insert the extractor into the pilot hole and using a tap wrench the bolt can
now be extracted carefully, by turning the screw extractor anti-clockwise.

• Carbon Steel
• Quick & Easy removal of broken bolts and studs

Recommended tap wrench:

• NR9002C
• NR9003C
• NR9004C
• NR9006C
