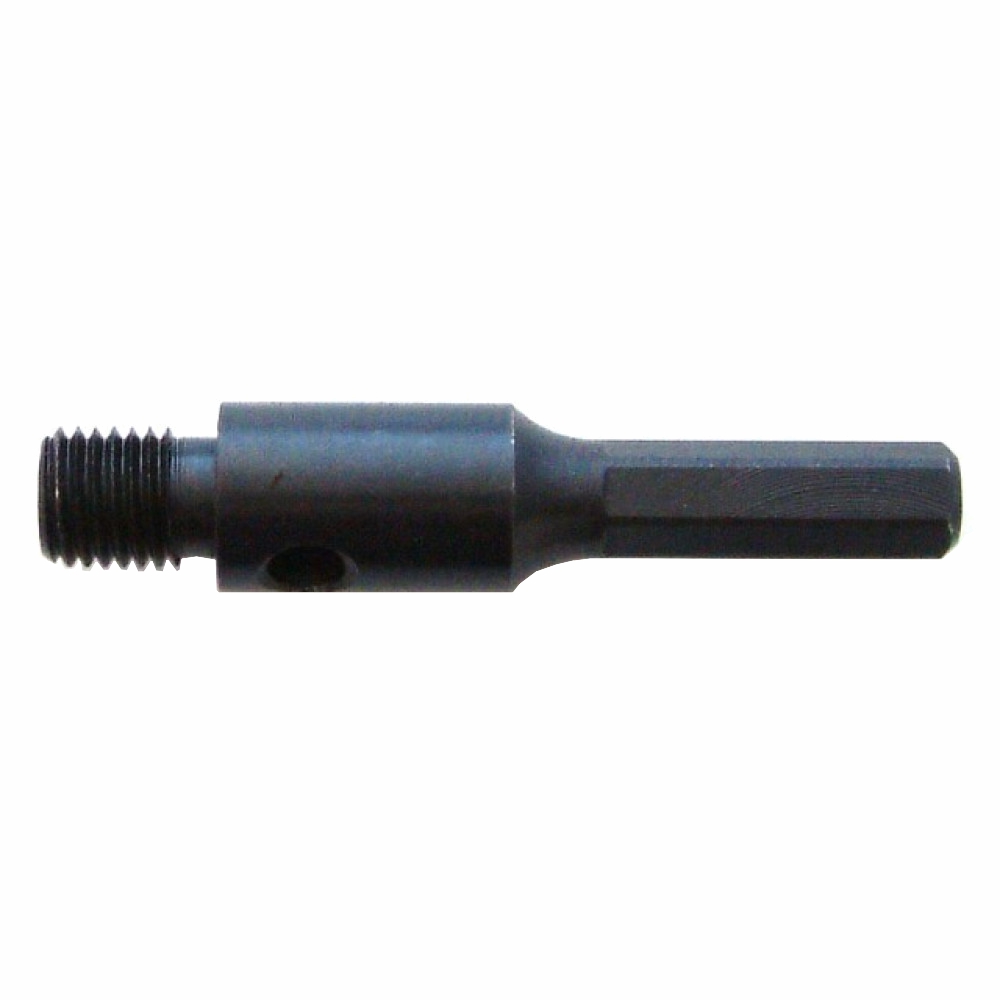

Adaptor length: 70mm
Thread: M16
Connection type: Hex

Application:

This is a Hex adaptor to connect the Dry Cut Diamond Core Drill to your
portable drill.

Make sure the threads are the same as the Dry Cut Diamond Core Drill – M22 or
M16.

Take note that there are 2 connection types:

• Hex
• SDS Plus

List of different adaptors:

1. Hex shank adaptors for the Dry Cut Diamond Core Drill range:

• Hex shank 70mm, M16 thread –

  TC18HEX1
• Hex shank 200mm, M16 thread –
  TC18HEX2
• Hex shank 300mm, M16 thread –
  TC18HEX3
• Drift key for removing the pilot drill –
  TC18KEY
• Pilot drill bit (not included with adaptors)-

  TC18PILOT

2. SDS Plus adaptors for the Dry Cut Diamond Core Drill range:

• SDS Plus 70mm, M16 thread –

  TC18SDS1
• SDS Plus 200mm, M16 thread –
  TC18SDS2
• SDS Plus 300mm, M16 thread –
  TC18SDS3
• SDS Plus 70mm, M22 thread –
  TC18SDS4
• SDS Plus 200mm, M22 thread –
  TC18SDS5
• SDS Plus 300mm, M22 thread –
  TC18SDS6
• Drift key for removing the pilot drill –
  TC18KEY
• Pilot drill bit (not included with adaptors)-

  TC18PILOT

NOTE:
The pilot drill bit is not included with the adaptors and it is available
separately –

TC18PILOT

INFORMATION:
Use the drift key
TC18KEY to remove or replace the
pilot drill bit from the adaptors.
