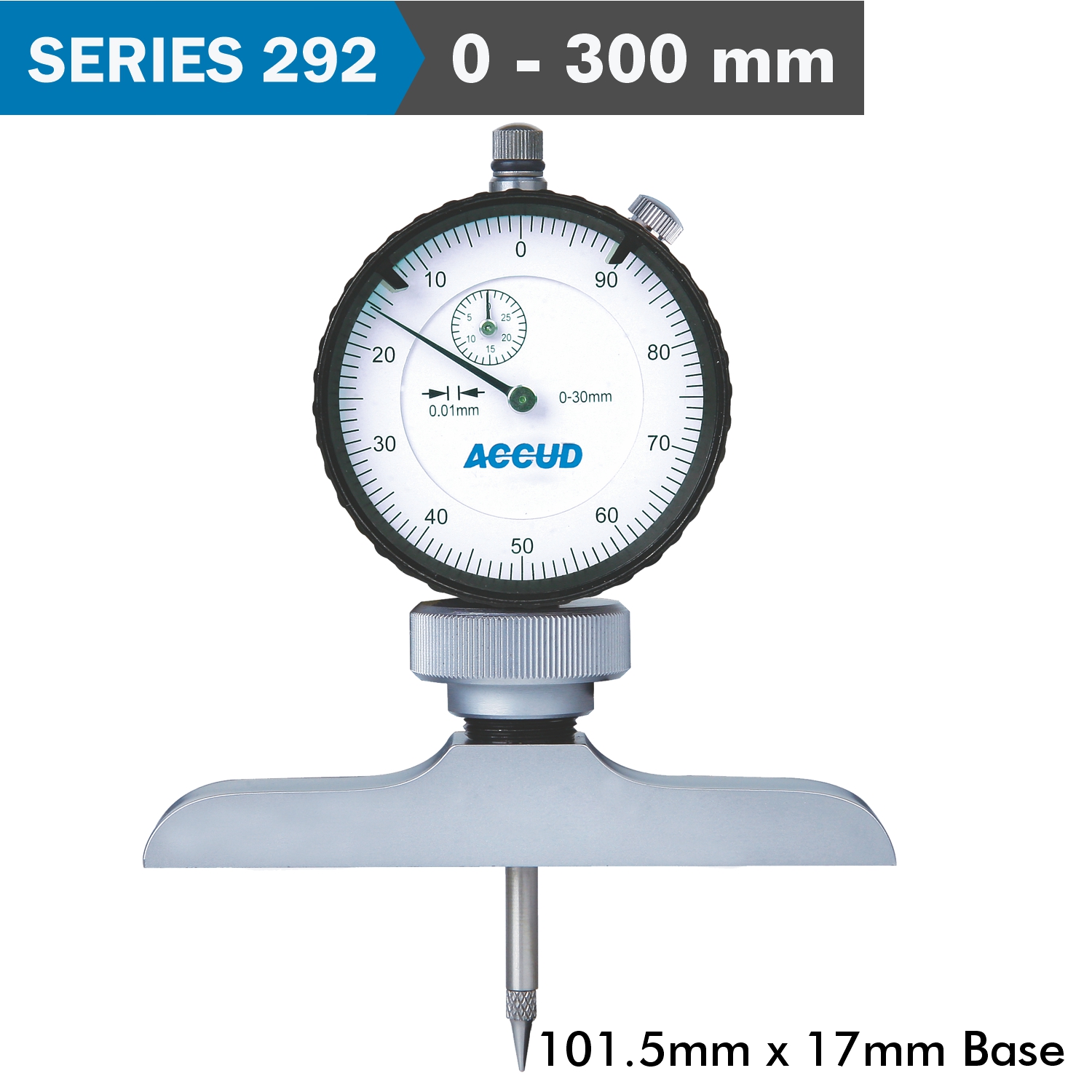

Dial Depth Guage 300mm 0.01mm Grad. 101.5x 17mm Base

Product information

Dial Depth Gauge - 300mm Range | Stainless steel base - 101.5mm x 17mm SERIES 292 A dial depth gauge is a precision measuring instrument used to determine the depth of holes, slots, recesses, or any other type of surface depression. It is commonly used in machining, engineering, and quality control to ensure that components meet specified depth dimensions accurately. • Manufacturer Cat No: 292-300-12 • Graduation: 0.01mm • Indicator travel: 30mm • Accuracy: ±0.03mm • Stainless steel base: 101.5mm x 17mm • Extension rod: 25mm (1pc), 50mm (1pc), 75mm (1pc),100mm (1pc) • Included: With needle and ball styli Applications • Machining: Used to measure the depth of drilled holes, milled slots, and other machined features to ensure they meet design specifications. • Quality Control: Employed in quality control processes to verify that components meet depth tolerances during inspection. • Engineering: Useful in various engineering tasks where precise depth measurements are critical, such as in tool and die making. • Metalworking: Essential for measuring the depth of recesses and other features in metalworking operations. In summary, a dial depth gauge is a vital tool for anyone needing to measure depth with high accuracy. Its robust design, combined with the precision of the dial indicator, makes it indispensable in machining, engineering, and quality control applications.

Category: Measuring/Marking > Indicators > Dial Depth Indicators
