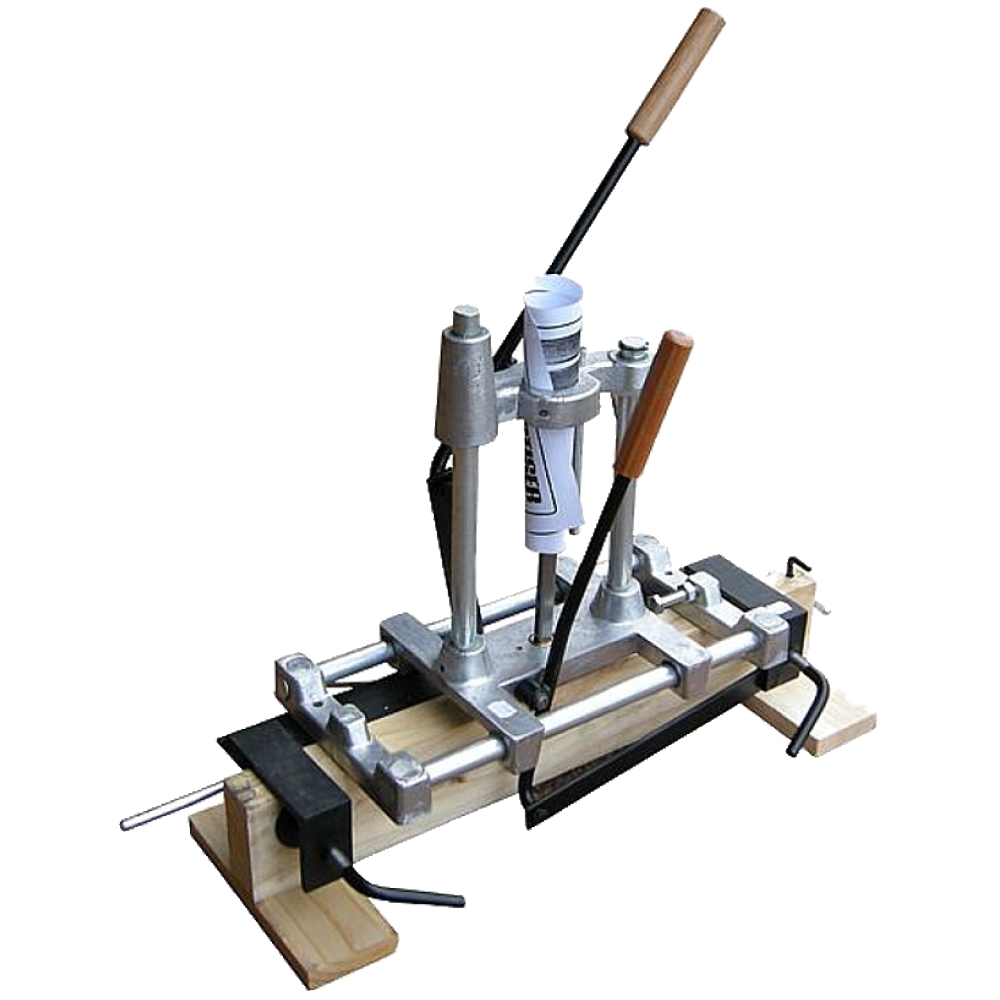

Lock Mortising Attachment With 17mm Cutter

Product information

Lock mortising attachment Jig to be used with an electric drill to bore out a mortise to fit a door lock. Application: The jig is clamped onto a door to cut a mortise for the fitment of a door lock. A drill is attached to the jig with the following requirements: • The chuck needs to be removed to expose the 20UNF thread. • The drill will be clamped on the collar (ø46mm). • The drill will be part of the jig and will thus be a semi-permanent addition. The cutting length and depth of cut can be adjusted to comply with the demands of various door lock sizes. The standard cutter supplied with the jig is a Ø17mm. We recommend using a drill with low speed torque. For example a rotary drill without percussion having 20 UNF thread. Accessories and spare parts for the EG1: • Grub screw M6x12mm • Grub screw M6x25mm • Handle bent • Handle straight • Hook • Long guide pillar • Long link • Medium guide pillar • Set of bushes • Shaft with Ø17mm MAD bit • Shafts • Short connecting bar • Short guide pillar • Short link • Spare clamp bolt for clamp assembly • Spare pressure pad with pin for clamp assembly • Bushes long • Bushes short • Wood stand • Allen key 6mm • Bearings and bushes • Castings - end pieces • Casting - middle piece • Casting - main body (H casting) • Clamp assembly • Clamp pad and bolt assebly • Drill jig Cutters for the EG1: • Ø17mm cutter • Ø19mm cutter • Ø22mm cutter • Ø25mm cutter • Ø17mm MAD bit (shaft required for the MAD bit) • TCT Ø17.15mm cutter

Category: Clamps/Jigs > Lock Mortising > Eg-1
