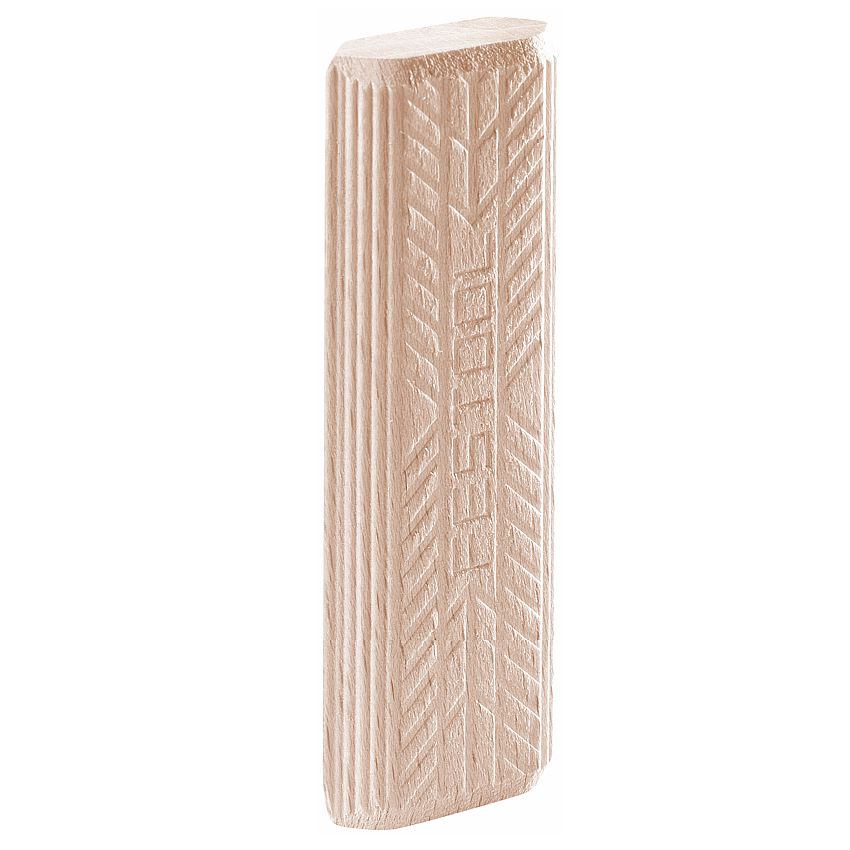

Festool DOMINO Beech Tenons D 14x75/104 BU 14 x 75mm (104 Pack)

Overview

Festool DOMINO Beech Tenons D 14x75/104 BU - 104 Pack At a Glance: Original Festool 14 x 75mm beechwood DOMINO tenons , specially developed for the DOMINO XL DF 700 joining machine and its corner and surface connector systems. Featuring precision-milled dimensions, longitudinal glue grooves, expanding glue pockets, centring guide ribs and chamfered ends, these tenons provide exceptional alignment, resistance to twisting and additional load transfer in professional timber joints. Manufactured from FSC-certified beechwood and supplied in a convenient pack of 104 tenons . Create exceptionally strong, accurately aligned and professional timber connections with the Festool DOMINO D 14x75/104 BU Beech Tenons . Designed specifically for the Festool DOMINO XL DF 700 joining system, these precision-manufactured wooden joining elements combine the advantages of traditional round dowels and flat loose tenons in one innovative connection system. The distinctive shape of a Festool DOMINO tenon provides excellent resistance to rotation while offering a substantial contact surface within the corresponding mortise. Unlike conventional round dowels, which can allow components to rotate around a single fixing point, the elongated DOMINO profile helps prevent twisting and provides immediate alignment between the workpieces being joined. These particular D14x75 tenons have been developed to complement the corner and surface connector systems used with the DOMINO XL DF 700 . Their carefully selected 75mm length matches the requirements of these connector arrangements, allowing the same joining system to accommodate both mechanical connectors and supporting wooden tenons without repeatedly changing the basic mortising setup. This combination is especially useful when manufacturing large furniture, cabinets, display structures, exhibition stands and shopfitting components. The mechanical connectors provide the required detachable connection, while the wooden DOMINO tenons contribute accurate positioning and additional load transfer between the joined components. Festool has paid particular attention to the detailed geometry of each tenon. The longitudinal grooves and specially formed glue pockets help distribute adhesive evenly when a glued connection is required. Excess glue can escape through the side grooves, reducing hydraulic pressure and helping the tenon seat correctly within the mortise. The laterally projecting guide ribs help centre the tenon within the DOMINO mortise. This supports precise positioning of the connected workpieces, helping maintain accurate edge alignment and improving the consistency of the completed joint. Chamfered ends make insertion easier, while the clearly marked size designation allows users to identify the correct DOMINO quickly when working with different tenon sizes. Manufactured from carefully selected beechwood , these tenons are intended primarily for interior woodworking applications. The wood is FSC-certified, supporting responsible forest management and traceable material sourcing. With dimensions of 14 x 75 x 27.9mm , these are substantial joining elements intended for appropriately sized timber and panel components. They provide excellent support for demanding furniture construction, framing, shopfitting and other applications requiring accurate, stable connections. Supplied in a professional pack of 104 pieces , Festool D 14x75/104 BU tenons are an essential accessory for users of the DOMINO XL DF 700 who demand reliable joining performance, efficient assembly and the flexibility of modern connector systems. DOMINO XL - Precision Joinery Without Compromise The Festool DOMINO joining system combines the accuracy of a purpose-designed mortising machine with specially shaped wooden tenons. Instead of drilling conventional round dowel holes, the DOMINO machine creates precisely shaped elongated mortises that correspond with the dimensions of the DOMINO tenons. The unique tenon profile provides a large contact surface and resistance to twisting. Its guide ribs, longitudinal grooves and glue pockets work together to support accurate positioning and effective adhesive distribution. For the DOMINO XL DF 700 , the D14x75 version provides an additional advantage: it is specifically matched to the XL corner and surface connector systems, allowing wooden tenons and mechanical connectors to be used together in suitable joint designs. The result: Accurate workpiece alignment, excellent joint stability, efficient assembly and greater flexibility when producing large timber structures and furniture. Product Highlights • Original Festool DOMINO Tenons: Precision-manufactured joining elements for the professional DOMINO XL system. • 14 x 75mm Size: Specially dimensioned for use alongside the DF 700 corner and surface connector systems. • 27.9mm Tenon Width: Wide, elongated profile provides substantial bearing and alignment surfaces. • Solid Beechwood: Manufactured from beech timber for strong, accurate interior woodworking connections. • FSC-Certified Material: Produced from responsibly managed and controlled wood sources. • Anti-Twist Geometry: The distinctive DOMINO cross-section resists rotation from the first installed tenon. • Integrated Guide Ribs: Laterally projecting ribs help centre the tenon within the corresponding mortise. • Special Glue Pockets: Designed to assist with the distribution of adhesive when making glued joints. • Longitudinal Glue Grooves: Allow adhesive to spread and excess glue to escape during assembly. • Chamfered Ends: Make tenon insertion easier and improve assembly convenience. • Imprinted Size Marking: Allows quick identification among different DOMINO tenon sizes. • Additional Load Transfer: Provides supplementary load-bearing support alongside compatible mechanical connectors. • Precise Workpiece Alignment: Helps maintain flush edges and correctly positioned components during assembly. • Suitable for Knock-Down Construction: Can assist alignment in suitable detachable joints using separate DOMINO connectors. • 104-Piece Pack: Convenient quantity for professional furniture manufacturing, shopfitting and joinery operations. Product Compatibility The Festool D 14x75/104 BU, manufacturer part number 201499 , is designed for the following joining system: • Festool DOMINO XL DF 700: Compatible with the DOMINO XL joining machine when fitted with the appropriate 14mm DOMINO cutter and configured for the required mortise dimensions. • DOMINO XL Corner Connector System: The D14x75 tenons are specifically matched to the corner connector arrangement and provide alignment and additional load transfer. • DOMINO XL Surface Connector System: Suitable for use alongside the corresponding surface connectors in appropriate panel and board joints. Suitable Joint Applications • Corner Joints: Suitable connections between intersecting structural or furniture components. • Surface and Flat Joints: Accurate alignment of suitable boards and panels. • Frame Construction: Connections in appropriately dimensioned frames and furniture structures. • Detachable Furniture Construction: Alignment and supplementary support when combined with suitable DOMINO XL mechanical connectors. • Traditional Glued DOMINO Joints: Suitable for permanent timber joints when the correct mortises and compatible adhesive are used. Important Machine Compatibility These 14mm DOMINO tenons are intended for the DOMINO XL DF 700 . They are not compatible with the smaller DOMINO DF 500 , which uses smaller tenon sizes and does not provide the required 14mm mortising capability. A suitable 14mm DOMINO cutter is required. The joining machine, cutter and mechanical connector components are supplied separately.
