Festool KAPEX KS 120 230V Armature and End Shield Assembly

Product information

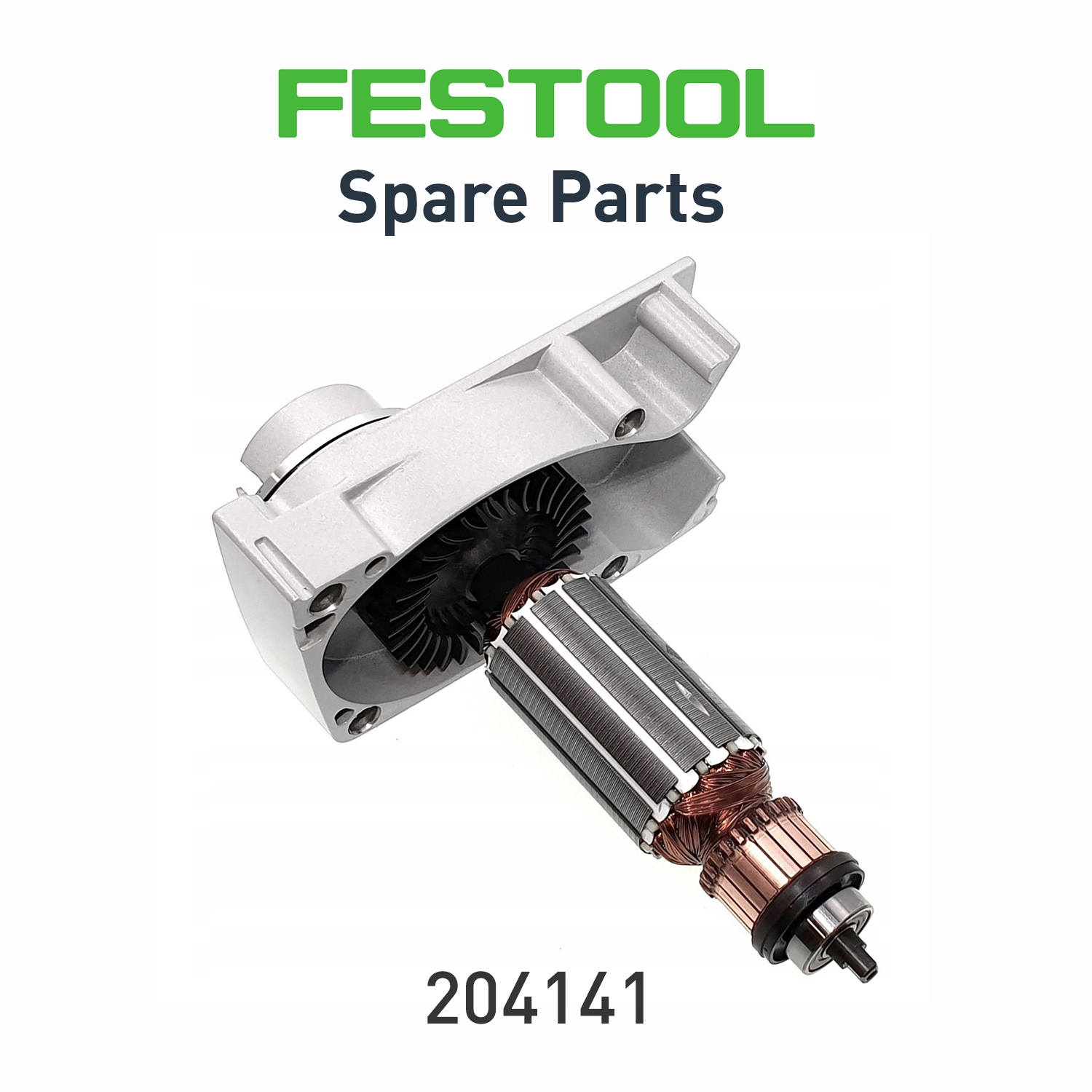

Festool KAPEX KS 120 230V Armature and End Shield Assembly At a Glance: Genuine Festool 230V replacement motor armature supplied preassembled with the supporting end shield for compatible KAPEX KS 120 and KS 88 saws. The Festool KS 120 ET-BG 230V end shield is a genuine replacement motor assembly for selected KAPEX sliding compound mitre saws. Although officially designated as an end shield, the replacement unit is supplied as a more comprehensive assembly incorporating the armature or rotor, commutator, shaft components and supporting end-shield structure shown in the product image. The armature is the rotating heart of the saw's electric motor. Working within the corresponding field assembly, it converts electrical energy into the rotational movement needed to drive the blade. The end shield supports and accurately locates the rotating assembly, helping maintain the correct relationship between the armature, bearings, brushes and adjoining drivetrain components. This 230V assembly provides a professional repair solution when the original armature, commutator, shaft or supporting end-shield components have been diagnosed as damaged. Correct installation requires detailed motor knowledge, specialised test equipment and subsequent electrical and mechanical safety testing. A complete rotating motor assembly for professional KAPEX repairs Supplying the armature together with its corresponding end shield reduces the need to build the rotating assembly from separate major components. The matched arrangement supports accurate bearing location, controlled rotation and dependable integration with the compatible KAPEX motor system. Product Highlights • More than an empty end shield: Supplied with the armature or rotor assembly installed as shown. • Genuine Festool spare part: Manufactured as the specified replacement motor assembly for compatible machines. • 230V configuration: Designed for selected European and compatible 240V KAPEX electrical variants. • Integrated commutator: Provides the contact surface through which the carbon brushes energise the rotating armature. • Accurate bearing support: The end shield helps locate and support the rotating motor assembly. • Drivetrain connection: The armature shaft transfers rotational power towards the saw's gear and blade-drive system. • Multi-model application: Listed for selected KS 120 EB, KS 120 REB and KS 88 RE machines.

Category: Power Tools > Powerool Spare Parts > Spare Parts
