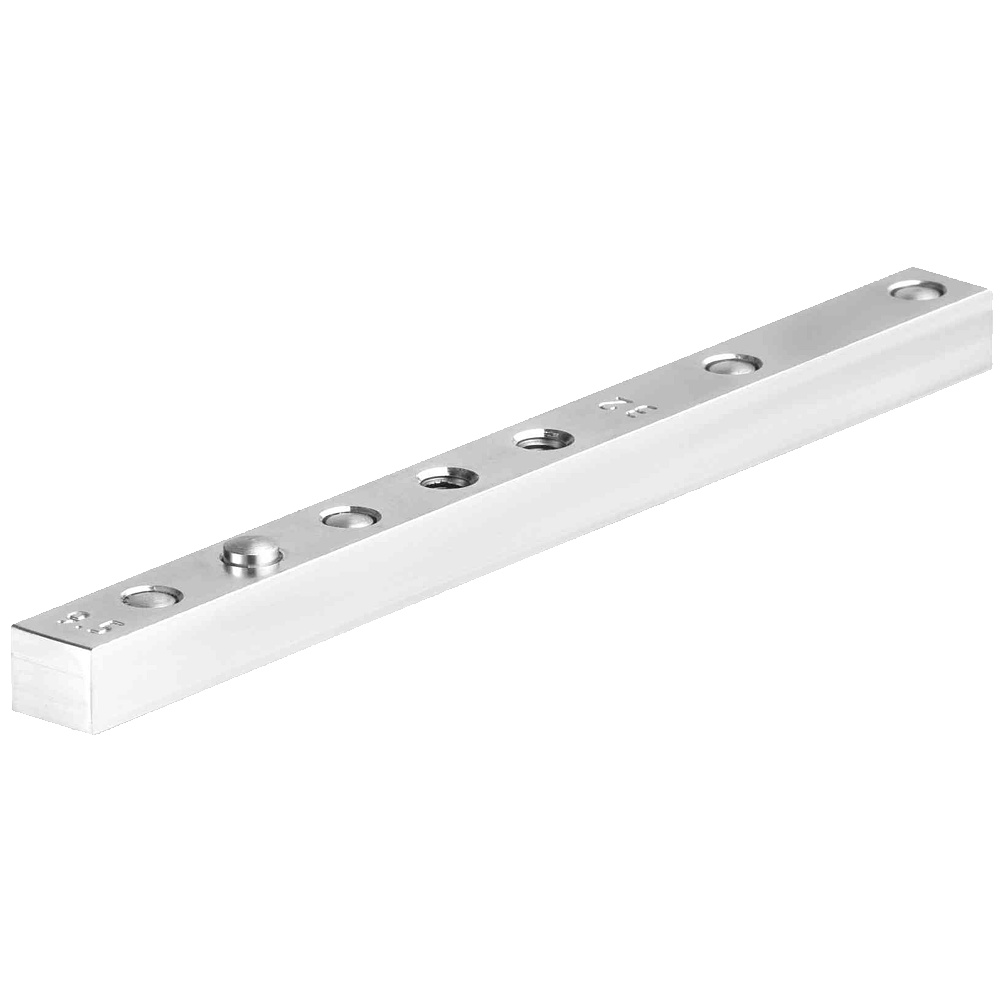

Festool LA-LR 32 FS Longitudinal Stops for LR 32 Hole-Series Guide Rails – Pack of 2

Overview

Festool LA-LR 32 FS Guide Rail Stops At a Glance: Pair of longitudinal stops for the Festool LR 32 system. Positions the first hole 9.5, 16 or 32 mm from the referenced workpiece end. Set up repeatable hole rows with the Festool LA-LR 32 FS longitudinal stops. These accessories locate the hole-series guide rail relative to the end of the panel, establishing the first-hole position for your LR 32 layout. Clearly marked settings provide three standard offsets, helping simplify setup when machining matching cabinet components. Supplied as a pair, the stops can supplement an existing LR 32 arrangement or equip another compatible hole-series rail. They are positioning accessories for the system rather than a complete drilling kit. Repeatable starting positions for hole rows The longitudinal stop establishes where the row begins along the panel. The rail supplies the 32 mm indexing pattern, while the system’s separate side stops establish the row’s distance from the panel’s side edge. Product Highlights • Three offsets: Select 9.5, 16 or 32 mm. • Visible markings: Imprinted dimensions assist setup. • Repeat positioning: Reference matching panels consistently. • System expansion: Useful for preparing an additional LR 32 rail. • Pair supplied: Two stops in the pack. Product Compatibility • Festool FS-LR 32 system: For compatible hole-series guide rails. • Router configurations: OF 900, OF 1000, OF 1010 and OF 1400 when equipped with the appropriate LR 32 components. • Additional equipment: Requires the suitable rail, guide plate, cutter and workholding arrangement. Setting note: The 9.5, 16 and 32 mm values are first-hole offsets. They do not change the LR 32 system’s 32 mm hole spacing.
