GAV R180 Inline 1/4' Piston Pressure Regulator

Product information

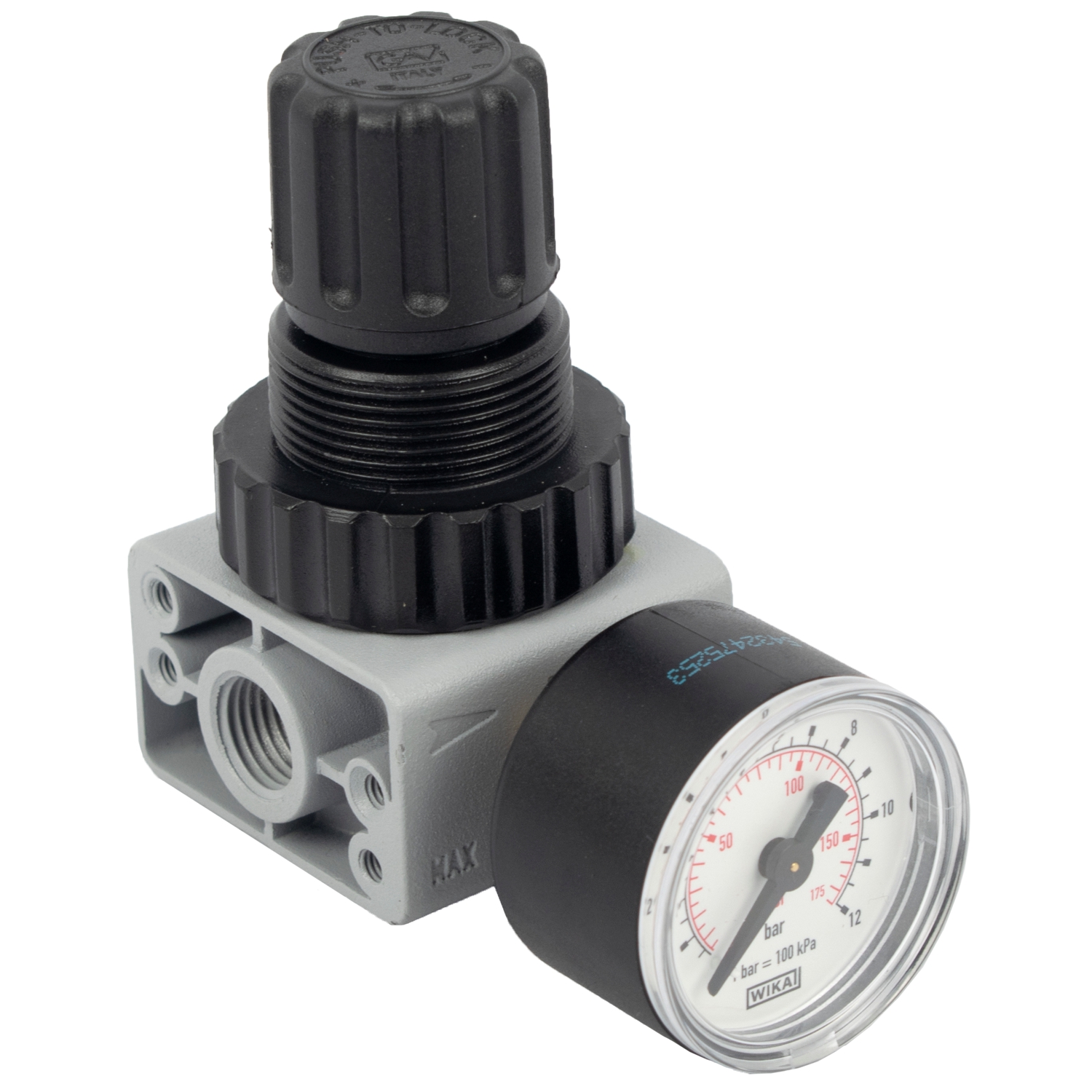

GAV R180 Inline 1/4' Piston Pressure Regulator Compact inline piston pressure regulator with 0–10 bar adjustment range and integrated manometer. The GAV R180 is designed for regulating compressed-air pressure in pneumatic installations and features a 1/4' BSP female connection, locking adjustment hand grip and pressure gauge. The GAV R180 is an inline piston micro-reducer designed to regulate compressed-air pressure in pneumatic systems. It has a maximum inlet pressure of 12 bar and an adjustable pressure range from 0 to 10 bar . With a specified flow of 1,700 Nl/min at 6 bar , the R180 provides controlled pressure adjustment for pneumatic equipment and compressed-air installations. The regulator is fitted with an adjustment hand grip with locking device and a manometer for monitoring the regulated pressure. Product highlights • Piston micro-reducer – Designed for regulating compressed-air pressure in pneumatic installations. • 0–10 bar adjustment range – Allows the outlet pressure to be adjusted according to the requirements of the application. • 12 bar maximum inlet pressure – Suitable for compressed-air systems within the specified maximum inlet pressure. • 1,700 Nl/min flow – Rated flow of 1,700 Nl/min at 6 bar. • Integrated manometer – Provides a visual indication of regulated pressure. • Locking adjustment – Adjustment hand grip incorporates a locking device to help maintain the selected pressure setting. • 1/4' BSP female connection – Designed for connection to compatible pneumatic components. • Made in Italy – Manufactured by GAV in Italy.

Category: Pneumatics > Air Treatment > Regulators
