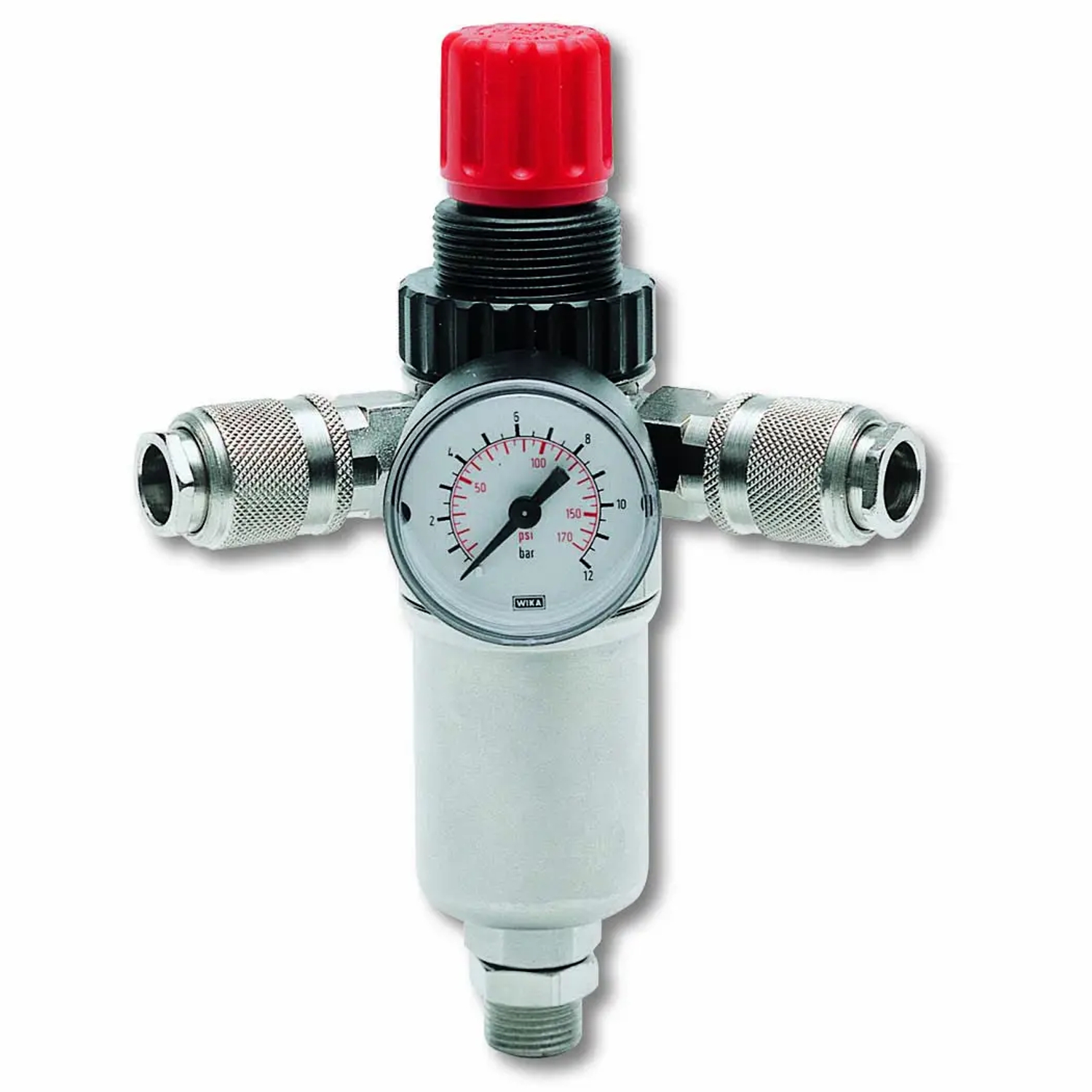

GAV RPF187R Pressure Reducing Valve & Filter 3/8' with Universal Couplers

Product information

GAV RPF187R Pressure Reducing Valve & Filter 3/8' with Universal Couplers GAV RPF187R is a pressure reducing valve with integrated filtration, a ø40 pressure gauge and two universal rapid couplers . It provides regulated and filtered compressed air for pneumatic systems, with a 3/8' BSP male connection . The GAV RPF187R combines pressure reduction and air filtration in a compact pneumatic air-treatment unit fitted with two universal rapid couplers. The ø40 pressure gauge provides pressure indication, while the integrated 10 µm filter helps remove contaminants from the compressed-air supply. The RPF187R provides an adjustable pressure range of 0–10 BAR, with a maximum inlet pressure of 12 BAR and a flow rate of 1800 Nl/min at 6 BAR. The unit has a 30 ml cup capacity and is configured for connection to compatible pneumatic equipment through its 3/8' BSP male connection. Product Highlights • Pressure reducing valve with integrated filter • ø40 pressure gauge • Two universal rapid couplers • Adjustable pressure range of 0–10 BAR • Maximum inlet pressure of 12 BAR • 10 µm filtration • 1800 Nl/min flow at 6 BAR • 30 ml cup capacity • 3/8' BSP male connection • Made in Italy

Category: Pneumatics > Air Treatment > Filter Regulators Oilers
