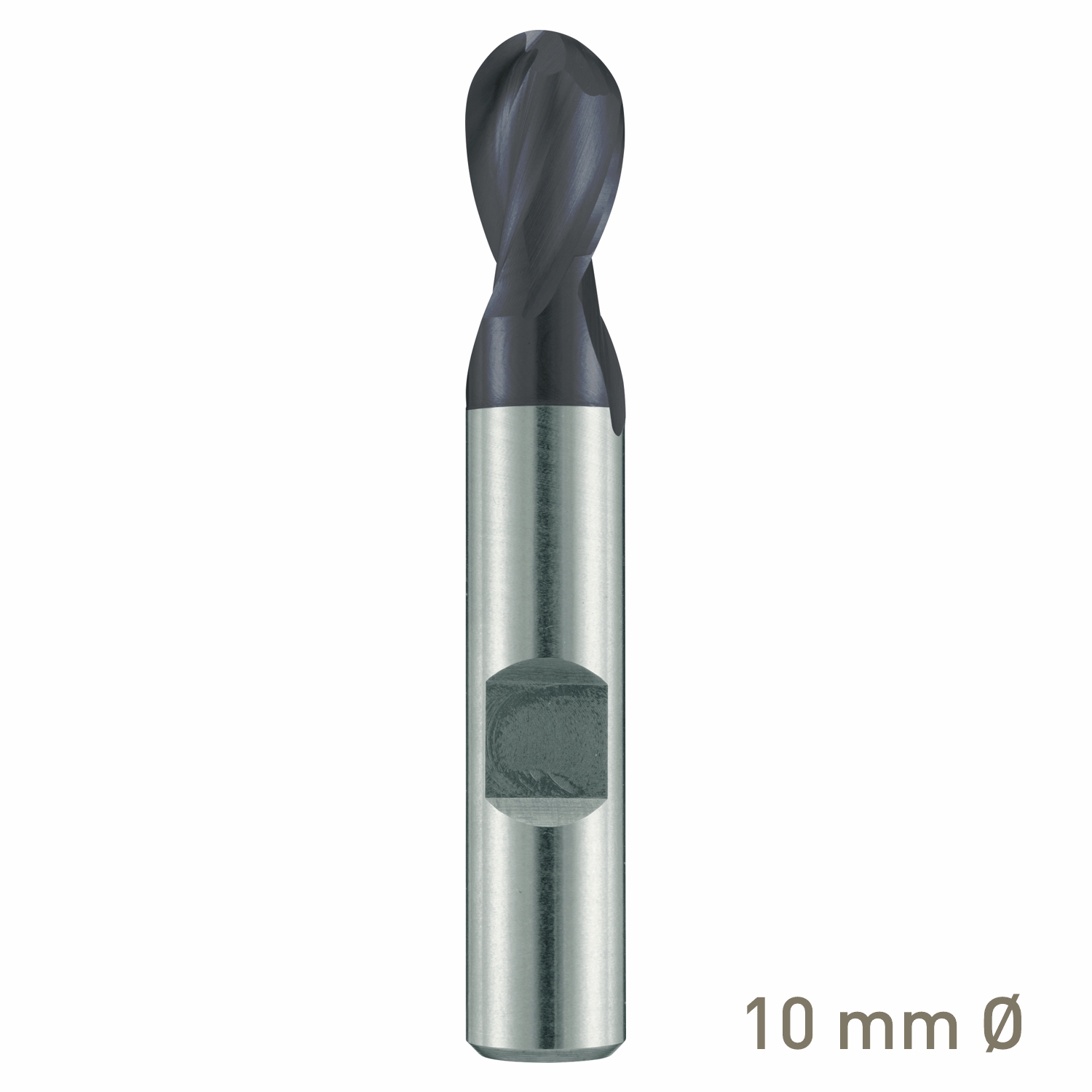

Maykestag ALUNIT HSS-Co8 ball nose end mill 10mm short series</h3>

Product information

Maykestag ALUNIT HSS-Co8 ball nose end mill 10mm short series Professional 10mm short-series ball nose end mill manufactured from HSS-Co8 and coated with ALUNIT&reg;, featuring a 5mm radius, two flutes, centre-cutting geometry and a 30&deg; Type N normal helix for accurate contouring, profiling, copy milling and general milling applications. The Maykestag Series 1057 is a precision HSS-Co8 ball nose end mill with a radiused cutting end, designed for machining curved profiles, rounded transitions, contoured surfaces and three-dimensional forms. Its centre-cutting geometry allows the cutting edges to work across the centre of the tool, while the two-flute configuration provides effective chip space during milling. The short-series construction provides increased rigidity and helps reduce tool deflection, supporting accurate machining and a consistent finish. The ALUNIT&reg; coating provides a hard, wear-resistant cutting surface designed to reduce friction and heat load while supporting increased cutting speeds, productivity and consistent machining performance. What is a ball nose end mill? A ball nose end mill is a milling cutter with a hemispherical or fully radiused cutting end rather than a flat square end. This geometry allows the tool to produce smooth curved surfaces, contours, profiles and three-dimensional forms, making it particularly useful for copy milling and applications where a rounded cutting profile is required. The two-flute, centre-cutting design of the Series 1057 provides a versatile cutting action for suitable milling applications. Product highlights • HSS-Co8 construction: High-cobalt high-speed steel provides excellent toughness, heat resistance and cutting-edge durability for demanding milling applications. • ALUNIT&reg; coating: Super-hard coating technology provides improved resistance to cutting-edge wear and heat, supporting increased cutting speeds, productivity and tool life. • 10mm cutting diameter: Provides a versatile cutting diameter for contouring, profiling, copy milling and general milling applications. • 5mm radius: Fully radiused cutting geometry produces smooth curved profiles and three-dimensional surfaces. • Short-series design: The compact construction increases tool rigidity and helps minimise deflection during machining. • Two-flute geometry: Provides useful flute space for effective chip evacuation during milling operations. • Centre cutting: Cutting edges extend across the centre, allowing the cutter to enter the workpiece as well as perform lateral milling. • Type N geometry: Normal helix geometry designed for general-purpose milling applications. • 30&deg; spiral angle: Provides a balanced cutting action and assists with effective chip removal. • WN specification: Manufactured according to the specified Maykestag works-standard geometry. • DIN 1835-B shank: Shank form with driving flat for secure tool holding in suitable toolholding systems. Why choose Maykestag? Maykestag is an Austrian cutting-tool manufacturer focused on precision-manufactured tools for professional machining. Controlled tool geometry, cutting materials and coating technology are important factors in achieving consistent tool life, machining accuracy and surface finish. The Series 1057 combines HSS-Co8 tool material with ALUNIT&reg; coating, a rigid short-series construction, two-flute centre-cutting geometry and a precisely formed ball nose cutting end. This makes it a dependable choice for workshops, toolrooms and production environments where repeatable contouring, profiling and copy-milling results are required.
