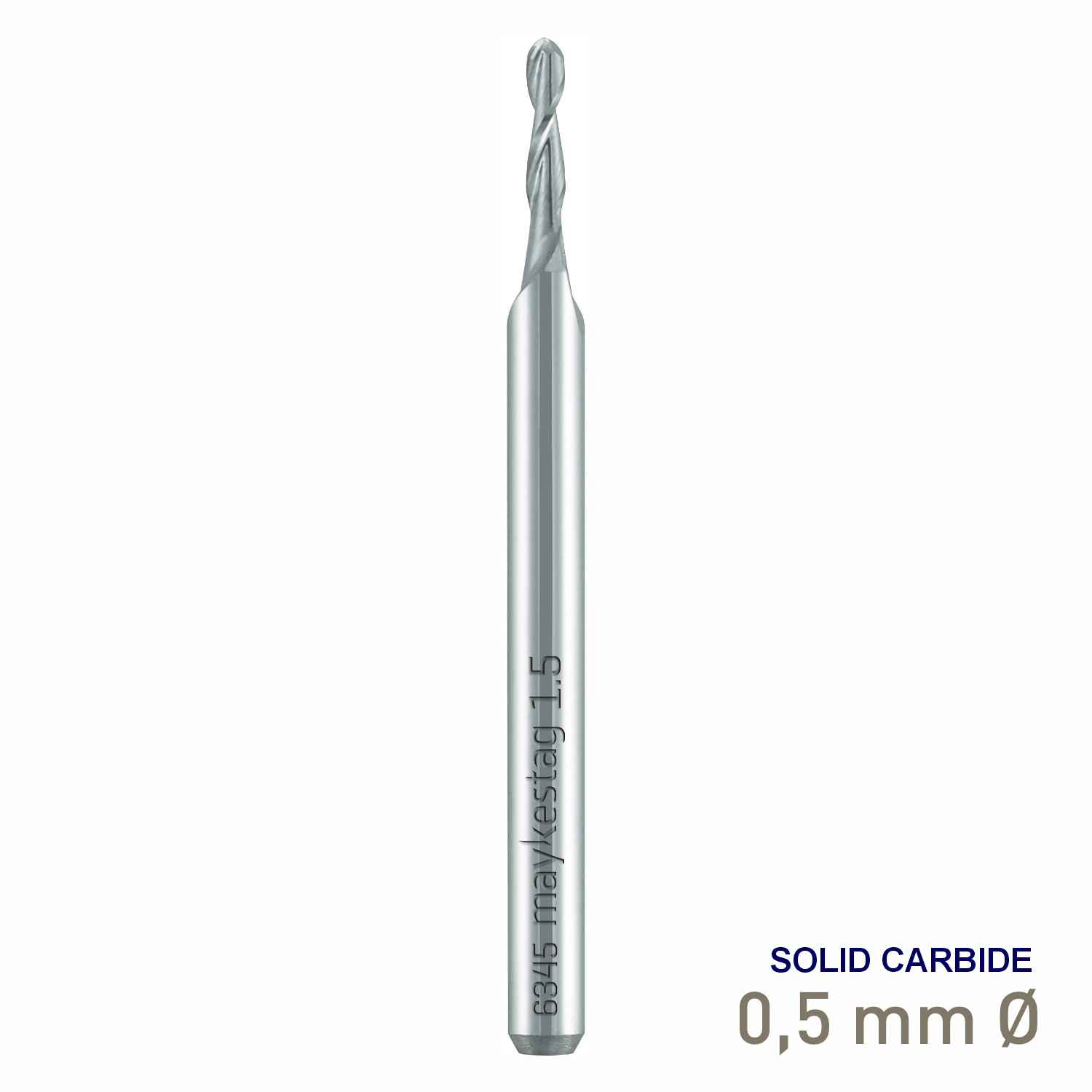

Maykestag Solid Carbide Mini Ball Nose End Mill 0.50mm R0.25 Z2 Reinforced Shank

Product information

Maykestag Solid Carbide Mini Ball Nose End Mill 0.50mm R0.25 Z2 Reinforced Shank Precision miniature ball nose milling with a reinforced shank. The Maykestag Code 6345 is a solid carbide mini ball nose end mill with two flutes, a short-series design and reinforced 3.00mm shank. This 0.50mm version features a 0.25mm ball radius and is designed for precise miniature contouring and 3D profiling applications. The Maykestag Code 6345 0.50mm mini ball nose end mill combines a miniature 0.50mm cutting diameter with a 0.25mm radius, two-flute geometry and a reinforced 3.00mm h6 shank. The short-series design provides a compact tool configuration for precision machining where small radii and fine surface detail are required. With a 38mm overall length and 1.5mm cutting length, this miniature cutter is particularly suited to detailed CNC milling, contouring and 3D profiling. The uncoated solid carbide construction and 30° helix provide the specified Code 6345 cutting geometry. What is a mini ball nose end mill? A ball nose end mill has a rounded cutting end that allows the tool to produce smooth curved surfaces, contours and three-dimensional profiles. The cutting radius corresponds to half the nominal cutting diameter when the end is a full hemispherical radius. This Maykestag cutter has a 0.50mm cutting diameter and 0.25mm radius , making it suitable for miniature machining applications where fine detail and very small radii are required. Product Highlights • 0.50mm cutting diameter for miniature precision milling • 0.25mm ball radius for fine contours and 3D profiles • 2-flute solid carbide design • Reinforced 3.00mm h6 shank for increased tool rigidity • Short-series configuration for compact machining setups • 30° helix angle • 38mm overall length • 1.5mm cutting length • DIN 6535-HA shank • Uncoated solid carbide construction • Type N geometry Why use a miniature ball nose cutter? Miniature ball nose end mills are used where conventional milling cutters are too large to reproduce the required geometry. Their small rounded cutting ends allow detailed contours, small radii, grooves and three-dimensional surfaces to be machined with high geometric precision. The reinforced shank of the Maykestag Code 6345 provides additional support behind the miniature cutting section, helping create a stable tool configuration despite the extremely small 0.50mm cutting diameter.
