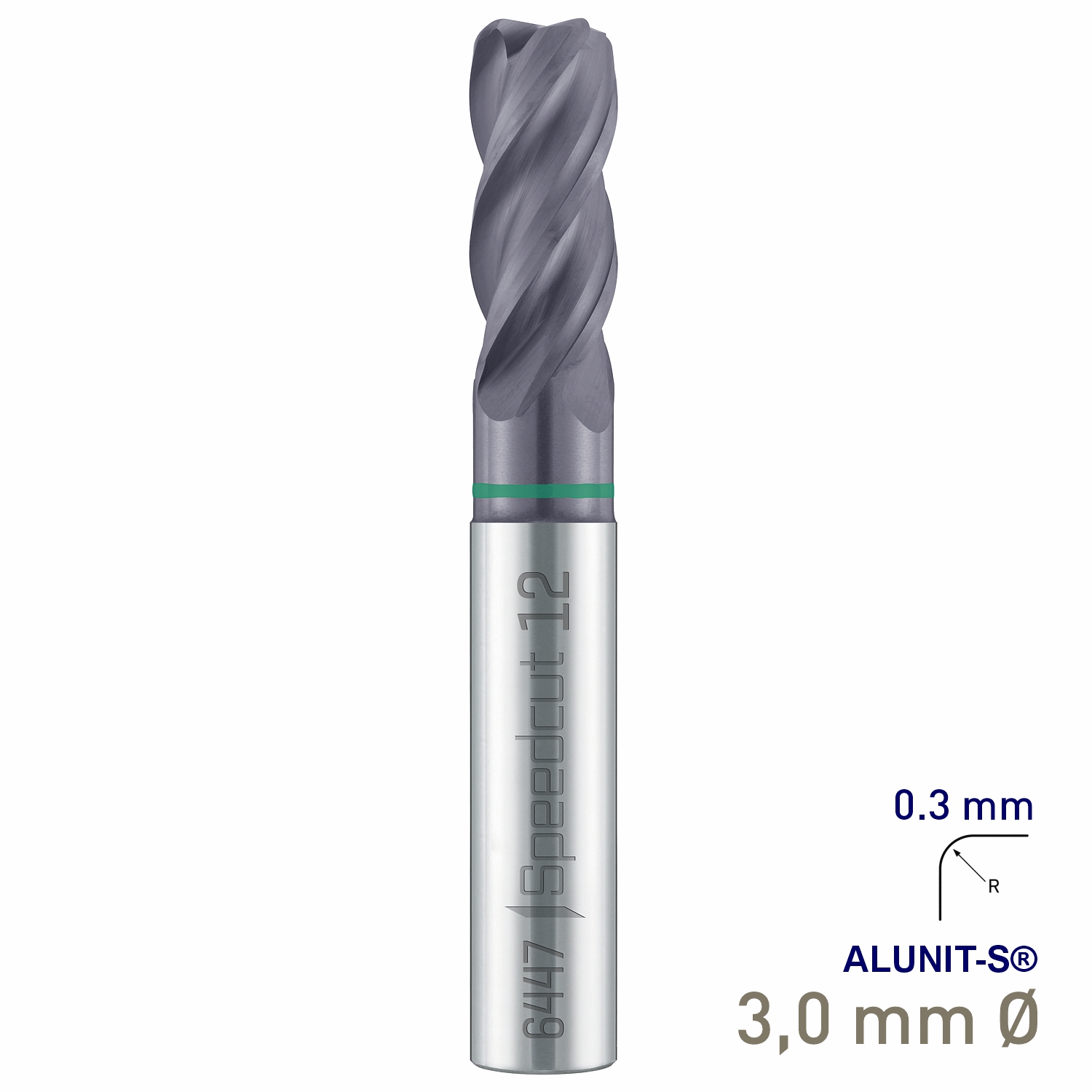

Maykestag Solid Carbide Corner Radius End Mill 3mm R0.3 Speedcut Universal ALUNIT-S

Product information

Maykestag Solid Carbide Corner Radius End Mill 3mm R0.3 Speedcut Universal ALUNIT-S Professional 3mm Speedcut Universal solid carbide corner radius end mill with a precise 0.3mm corner radius, long-series neck-relieved design, 4 flutes, unequal 35°–38° spiral angles and ALUNIT-S® coating for high-performance milling. The Maykestag Code 6447 Speedcut Universal is a precision HPC milling cutter designed for productive machining across a broad range of engineering materials. This 3mm version combines a solid carbide cutting body with a 0.3mm corner radius, a relieved neck and four cutting flutes, providing a strong and stable cutting geometry for accurate profiling, contouring, shoulder milling and other precision milling operations. Its unequal 35°–38° spiral geometry provides a progressive cutting action, while the long-series neck-relieved construction gives additional clearance behind the cutting section. The cutter is manufactured to DIN 6527 L , features a cylindrical DIN 6535-HA shank and is finished with Maykestag's ALUNIT-S® coating. Why use a corner radius end mill? A corner radius end mill combines the versatility of a flat-ended milling cutter with a defined radius between the end cutting edge and the outside diameter. This radius removes the sharp corner found on a conventional square-end cutter, producing a stronger cutting-edge transition and a controlled internal radius. The 0.3mm radius on this cutter is well suited to precision profiling, contouring and shoulder-milling applications where a small radiused transition is required. Product highlights • 3mm cutting diameter: Precision-sized cutter for detailed profiling, contouring and general milling work. • 0.3mm corner radius: Produces a controlled radiused transition while strengthening the cutting corner. • VHM solid carbide: Manufactured from solid carbide for high rigidity, dimensional stability and dependable cutting performance. • Speedcut Universal: Part of Maykestag's versatile Speedcut Universal range for machining a broad selection of engineering materials. • HPC geometry: Designed as a high-performance milling cutter for productive machining under suitable cutting conditions. • 4-flute design: Four cutting edges provide a productive cutting action and support stable milling performance. • Unequal spiral angles: 35°–38° spiral geometry provides a progressive cutting action. • Neck-relieved construction: The reduced 2.90mm neck diameter provides clearance behind the cutting section for improved accessibility. • ALUNIT-S® coating: Maykestag's specified coated finish for the Code 6447 series. • DIN 6527 L: Long-series end mill manufactured to the specified DIN dimensional standard. • DIN 6535-HA shank: Cylindrical HA shank form for accurate holding in suitable precision toolholding systems. • Precision radius tolerance: Corner radius manufactured to a specified tolerance of ±0.005mm. Why Choose Maykestag? Maykestag cutting tools are developed for professional machining environments where geometry, dimensional accuracy and repeatable performance matter. The Speedcut family combines carefully defined cutter geometries with application-specific tool materials and coatings, helping the machinist select a cutter according to both the machining operation and workpiece material. The Code 6447 Speedcut Universal series combines solid carbide construction, ALUNIT-S® coating, unequal spiral geometry and a neck-relieved long-series design. This 3mm cutter adds four cutting flutes and a precisely formed 0.3mm corner radius, creating a versatile milling tool for precision profiles, shoulders and contoured features where cutting-edge strength and dimensional control are important. Built for Precise Universal Milling The combination of the 3mm cutting diameter, 0.3mm corner radius and relieved 2.90mm neck allows this cutter to machine detailed features while maintaining clearance behind the active cutting section. Its four-flute configuration provides multiple cutting edges for productive milling, while the unequal 35°–38° spiral angles support a smooth, progressive cutting action. Used with the correct spindle speed, feed rate, toolholding and machining strategy, the Code 6447 is designed to provide accurate and repeatable milling performance across its recommended material groups.

Category: Drilling > Steel/Metals > Standard
