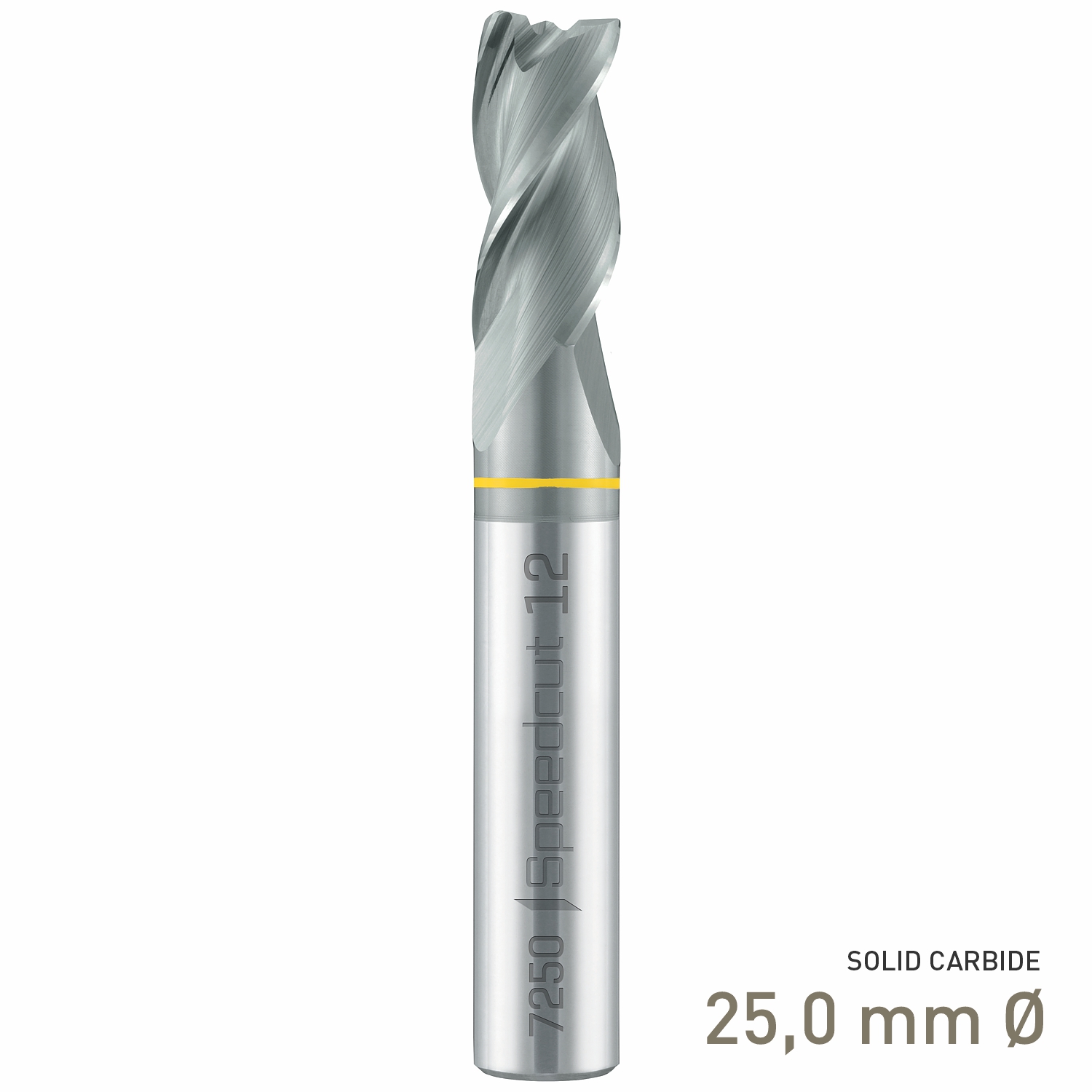

Maykestag Solid Carbide End Mill Speedcut-Aluminium 25.00mm Z4

Product information

Maykestag Solid Carbide End Mill Speedcut-Aluminium 25.00mm Z4 Professional 25.00mm Maykestag Speedcut-Aluminium solid carbide end mill manufactured in Type W geometry with four cutting edges, variable 34°-38° helix angles and a long-series necked design. Uncoated and manufactured to DIN 6527L with a DIN 6535-HA cylindrical shank, it is particularly suitable for high-performance machining of aluminium, including both cast and wrought aluminium alloys. The Maykestag Code 7250 Speedcut-Aluminium is a high-performance solid carbide end mill designed especially for machining aluminium materials. Its long-series, necked construction provides extended reach while the carefully developed cutting geometry is designed to promote high cutting volumes, excellent chip evacuation and superior surface quality. The 34°-38° variable helix angles help provide smooth, low-vibration cutting behaviour and efficient chip transport. The 25.00mm version is the largest diameter in the Code 7250 range and uses four cutting edges (Z4) , whereas the smaller sizes in the series use three cutting edges. The tool has a 25mm h6 shank , 120mm overall length, 45mm effective cutting length and 62mm neck length. A 0.30mm 45° protection chamfer provides additional edge protection at the tool end. What is a Speedcut-Aluminium end mill? A Speedcut-Aluminium end mill is a solid carbide milling cutter developed specifically for the high-performance machining of aluminium alloys. Its application-focused cutting geometry is designed to provide efficient chip breaking and evacuation, high material removal rates and a smooth machined surface. The necked long-series design also allows machining where additional tool reach is required. Product highlights • Maykestag Code 7250: Professional Speedcut-Aluminium solid carbide end mill for high-performance aluminium machining. • 25.00mm cutting diameter: Large-diameter configuration for demanding aluminium milling applications. • Four cutting edges: The 25mm size uses a Z4 configuration for efficient cutting performance and high material removal rates. • Type W geometry: Application-specific geometry developed for aluminium machining. • 34°-38° variable helix: Different spiral angles promote smooth, low-vibration cutting and efficient chip transport. • Long series, necked design: Provides extended tool reach for machining deeper or less accessible areas. • Solid carbide construction: High-performance carbide construction provides the rigidity and cutting performance required for demanding milling operations. • Uncoated cutting edges: Optimised for the intended aluminium machining application. • DIN 6527L: Manufactured to the specified standard for solid carbide milling cutters. • DIN 6535-HA shank: Cylindrical shank configuration with h6 shank tolerance. • 45° protection chamfer: 0.30mm protection chamfer helps protect the tool edge. • Aluminium specialist: Particularly suitable for both cast and wrought aluminium alloys. • HSC / HPC capable: Suitable for high-speed and high-performance machining applications when the correct cutting data and machining conditions are used. Why Choose Maykestag Speedcut-Aluminium? Maykestag develops specialised solid carbide milling cutters with carefully controlled cutting geometries for demanding professional machining applications. The Speedcut-Aluminium range is specifically engineered for aluminium materials, where efficient chip evacuation, high cutting performance and excellent surface quality are important. The Code 7250 combines a solid carbide construction with a variable 34°-38° helix, application-specific Type W geometry and a necked long-series design. The 25.00mm version is configured with four cutting edges to provide efficient machining performance at this larger diameter. Designed for High-Performance Aluminium Milling Aluminium machining demands effective chip evacuation and a cutting geometry that can maintain high material removal rates without compromising surface quality. The Speedcut-Aluminium geometry incorporates a carefully optimised grinding and cutting design to promote excellent chip breaking and chip transport while maintaining a smooth tool surface. The long, necked configuration provides additional reach for machining deeper contours and difficult-to-access areas. The variable 34°-38° helix contributes to smooth running and reduced vibration, while the four-flute configuration of the 25.00mm tool provides efficient cutting engagement for demanding aluminium milling operations.

Category: Drilling > Steel/Metals > Standard
