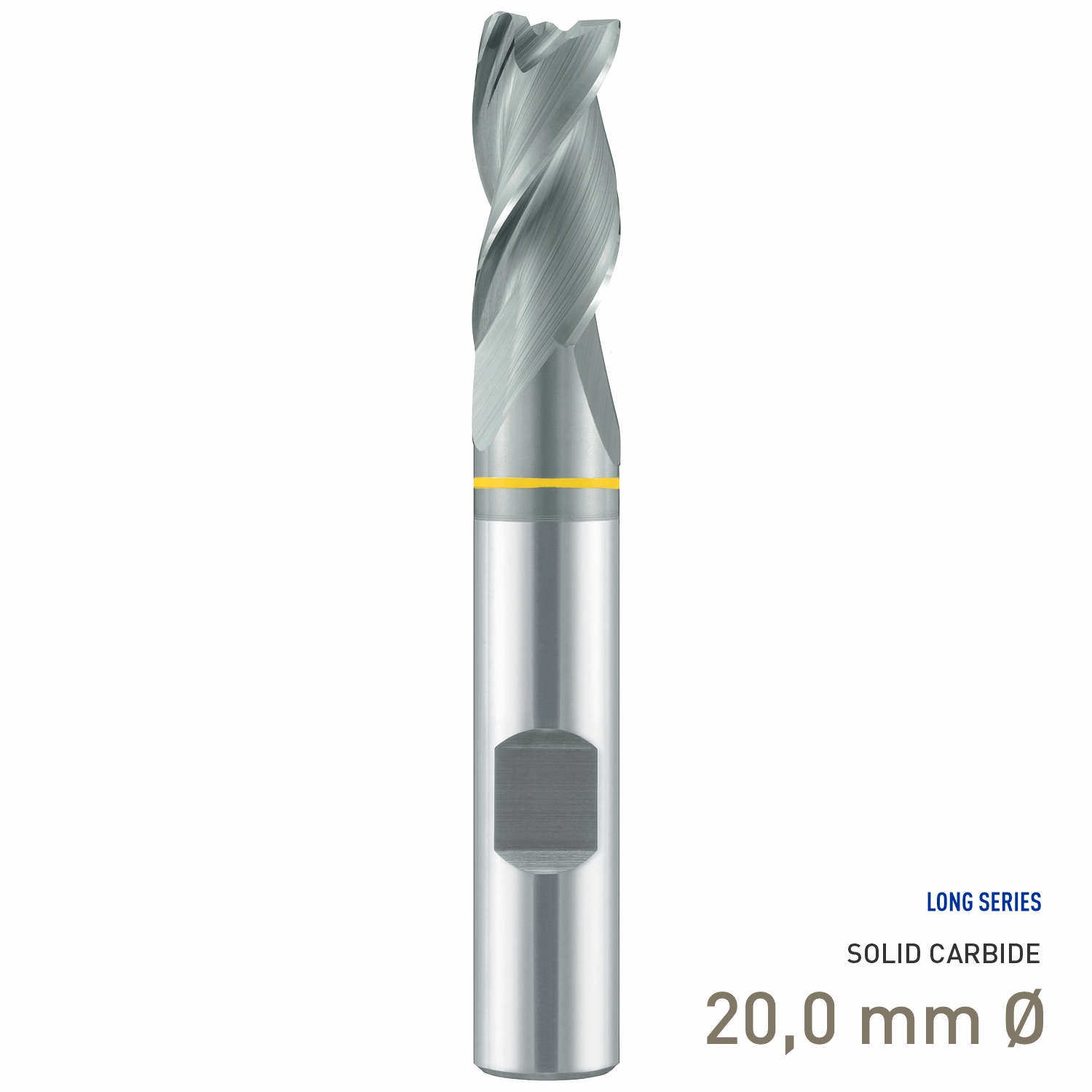

Maykestag Solid Carbide End Mill Speedcut-Aluminium 20.00mm Z3 DIN 6535-HB Weldon

Product information

Maykestag Solid Carbide End Mill Speedcut-Aluminium 20.00mm Z3 DIN 6535-HB Weldon Professional 20.00mm Maykestag Speedcut-Aluminium solid carbide end mill manufactured in Type W geometry with three cutting edges, different spiral angles and a long, necked design. The uncoated cutter features a DIN 6535-HB Weldon shank and is specifically developed for high-performance machining of aluminium, with additional suitability for copper, brass and plastics. The Maykestag Code 7950 Speedcut-Aluminium is a high-performance solid carbide end mill designed specifically for aluminium machining. Its long-series, necked configuration combines a stable solid carbide construction with three cutting edges and different spiral angles of 34°–38° to promote efficient chip evacuation, high cutting performance and excellent surface quality. The 20.00mm version has a 20.00mm h6 Weldon shank, 104mm overall length, 38mm cutting length and 54mm neck length. Its Type W geometry , 45° head form and 0.25mm protection chamfer are designed for demanding aluminium milling applications where high material removal rates and stable cutting performance are required. What is a long-series, necked end mill? A long-series, necked end mill provides additional reach compared with a conventional short end mill while reducing the diameter of the tool body behind the cutting section. This configuration provides clearance around deeper or recessed features while retaining the cutting geometry required for productive milling. Product highlights • Maykestag Code 7950: Speedcut-Aluminium solid carbide high-performance end mill with a DIN 6535-HB Weldon shank. • 20.00mm cutting diameter: Large-diameter configuration for high-volume material removal and demanding milling applications. • Three cutting edges: Z3 geometry provides an effective balance between chip space, cutting performance and feed capability. • Type W geometry: Application-specific geometry developed for aluminium and other non-ferrous materials. • Different spiral angles: Variable 34°–38° helix helps support smooth cutting behaviour and efficient chip evacuation. • Long-series, necked design: Provides extended reach and clearance for deeper or recessed machining features. • Solid carbide construction: Provides the rigidity and cutting performance required for high-speed and high-performance milling. • Uncoated cutting edges: Blank carbide configuration developed for the Speedcut-Aluminium application. • DIN 6527L: Manufactured as a long solid carbide high-performance milling cutter. • DIN 6535-HB Weldon shank: Weldon-style shank configuration provides positive tool retention in compatible toolholders. • 45° head form: Application-specific head geometry for the Speedcut-Aluminium range. • 0.25mm protection chamfer: 45° protection chamfer at the cutting edge. • Aluminium specialist: Rated by Maykestag as ideal for aluminium machining. • Copper and brass: Rated by Maykestag as especially suitable for copper and brass. • Plastics: Rated by Maykestag as especially suitable for plastics. Why Choose Maykestag Speedcut-Aluminium? Maykestag develops specialised solid carbide milling cutters with application-focused geometries for demanding professional machining. The Speedcut-Aluminium range is designed specifically for aluminium machining, including both cast and wrought aluminium alloys, where high cutting volumes, efficient chip evacuation and good surface quality are important. The Code 7950 combines Type W geometry, three cutting edges, different spiral angles, a long-series necked configuration and solid carbide construction. The optimised geometry is designed to provide stable cutting performance, efficient chip transport and high material removal rates while maintaining a high-quality machined surface. Designed for High-Performance Aluminium Milling Aluminium machining requires a cutter geometry that can remove large quantities of material while controlling chip formation and maintaining cutting stability. The Speedcut-Aluminium's specialised Type W geometry and variable 34°–38° spiral angles are designed specifically around these requirements. The long, necked configuration provides additional reach and clearance around the cutting section. This makes the cutter particularly useful when machining deeper pockets, recessed features and components where additional tool clearance is required.
