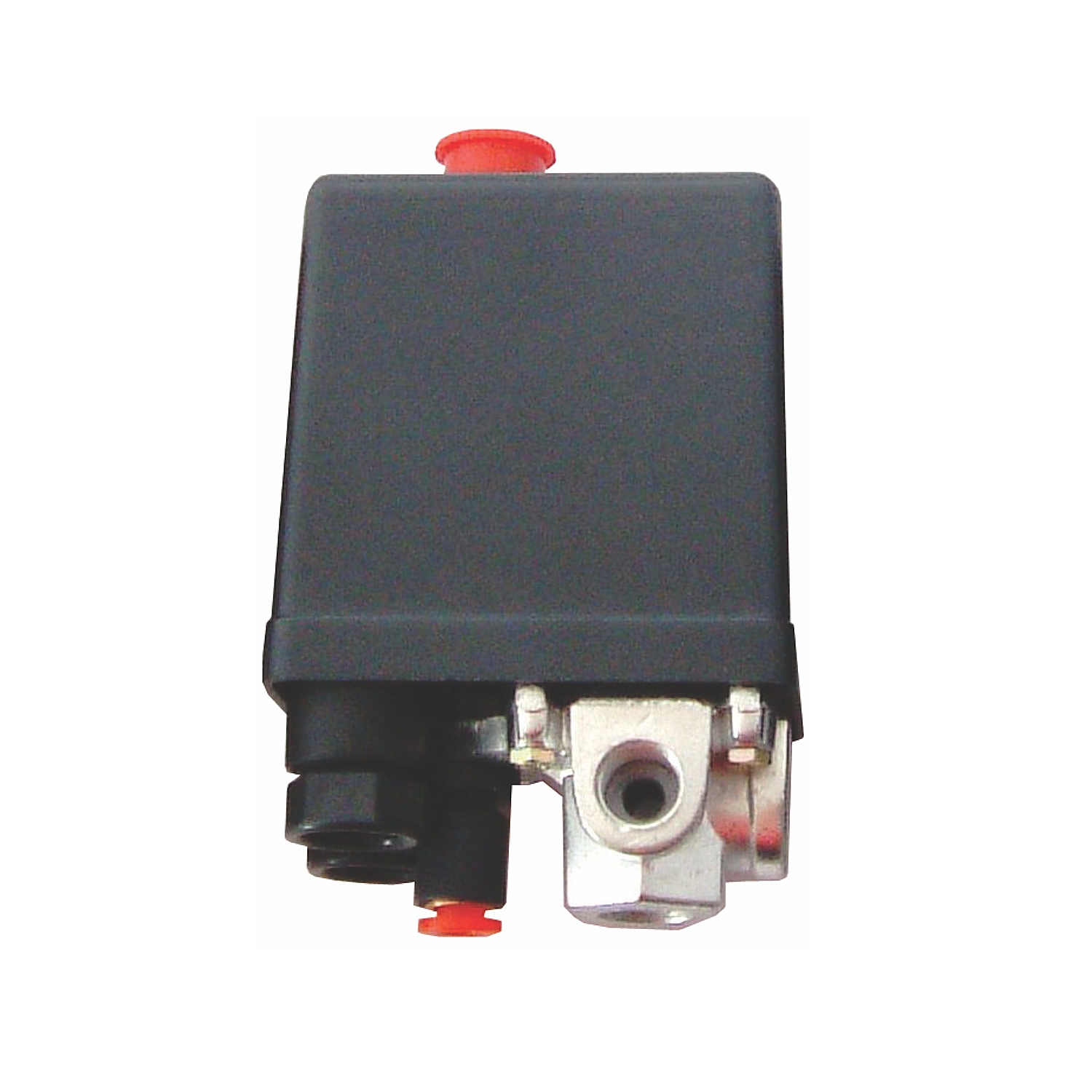

Press.switch 1 Ph.4 Way Push In Valve

Product information

Pressure switch - Four way, single phase The pressure switch is used to start and stop a compressor to maintain pressure in a pneumatic system. Voltage: Single phase Unloader connection Push-in (nylon tube) Thread: 1/4 BSP Ports: Four way Pressure rating: Max 10 Bar Air pressure is important: Compressors need quite a bit of power to generate compressed air and it is advised to keep the electrical cable to a minimum length. A 10m cable lead should have a core thickness of at least 2.5mm. If distance is important to supply compressed air, rather increase the length of hose instead of using an extension lead. An extension lead could shorten the life expectancy of the pressure switch.

Category: Pneumatics > Compressor Spares > Pressure Switches
