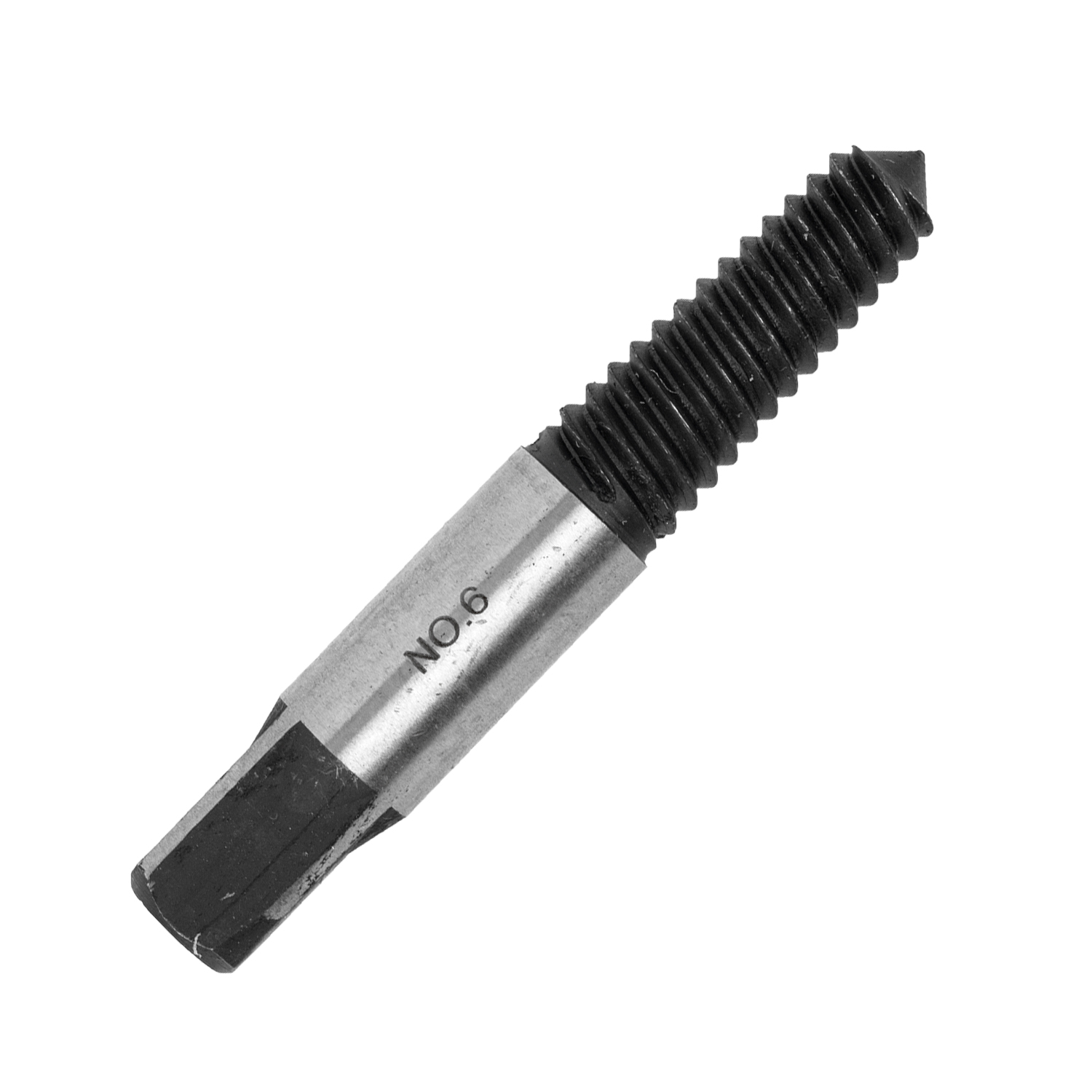

Screw Extractor No.6 Carded

Product information

TorkCraft - Screw Extractor Size: M18 - M24 Diameter: 10 0mm Recommended Drill Size: 12.0 mm Shank: 12.0mm Square Shank Application: The Tork Craft Screw Extractor is for the removal of broken bolts and studs, made of carbon steel. Determine the size of the bolt and the desired extractor size, use a file and flatten the broken bolt surface, usually bolts that broke are left with an uneven surface. Locate the center on the flattened surface and mark with a center punch. Drill a pilot hole, start off with a small diameter and increase to the recommended drill size depending on the extractor size in use. Insert the extractor into the pilot hole and using a tap wrench the bolt can now be extracted carefully, by turning the screw extractor anti-clockwise. • Carbon Steel • Quick & Easy removal of broken bolts and studs Recommended tap wrench: • NR9005C • NR9007C WARNING: Using any tool can be dangerous. Always select the right tool for the job.

Category: Drilling > Threading > Screw Extractors
