Tork Craft 11 Piece Spoke Torque Wrench Set 1-8Nm TCTQGM711

Product information

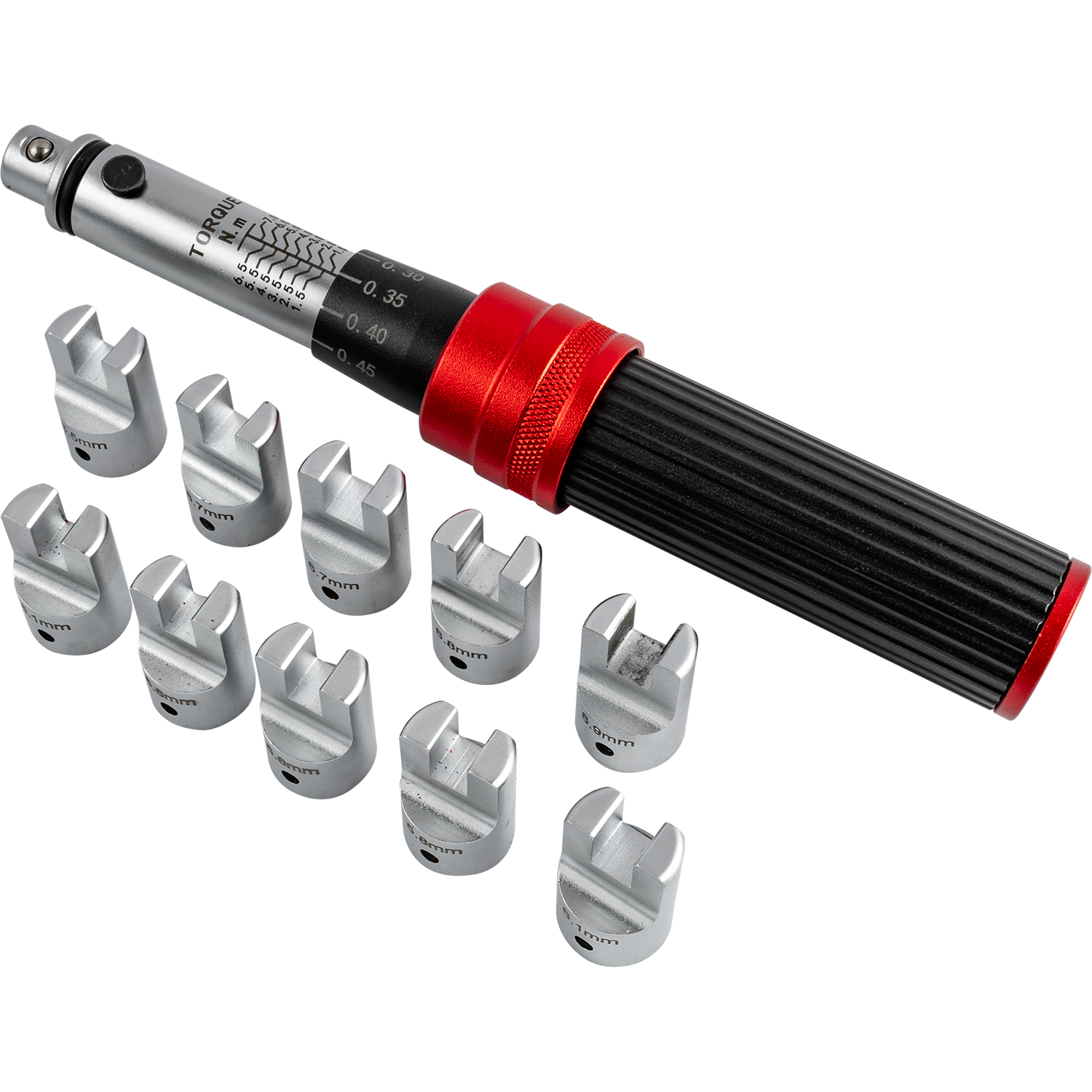

Tork Craft 11 Piece Spoke Torque Wrench Set 1-8Nm At a Glance: Precision mechanical spoke torque wrench set with a 1-8Nm range, fine 0.05Nm resolution, ±4% accuracy, 9 spoke head inserts plus a spline insert and a protective storage case. Achieve controlled and repeatable spoke tension adjustments with the Tork Craft TCTQGM711 Spoke Torque Wrench Set. Developed specifically for precision spoke work, this compact mechanical torque wrench covers a 1-8Nm torque range with fine 0.05Nm resolution and ±4% accuracy. The set includes nine different flat spoke head inserts from 5.1mm to 6.9mm plus a spline head insert, allowing the correct insert to be selected for the spoke nipple being serviced. A laser-engraved Nm scale, locking adjustment collar and clear mechanical click make setting and applying the required torque straightforward. Once the selected torque is reached, the wrench momentarily releases with an audible and tactile click, helping the operator stop at the specified setting and avoid unnecessary over-tightening. Supplied in a blow moulded case, the complete 11 piece set is ideal for motorcycle wheel spoke maintenance, servicing and precision final adjustment. Purpose-built precision for spoke tension adjustment The TCTQGM711 is not a conventional socket torque wrench. Its 10.9mm round drive with ball detent is designed to accept the supplied spoke head inserts, creating a compact torque-controlled system specifically for spoke nipples. The nine flat inserts and additional spline insert provide a useful selection for different spoke head profiles, while the 1-8Nm adjustment range gives the fine control required for delicate spoke tension work. Product highlights • 1-8Nm torque range: Designed for precise low-torque spoke tension adjustment. • 0.05Nm resolution: Allows fine adjustment of the required torque setting. • ±4% accuracy: Provides controlled and repeatable torque application when correctly operated and maintained. • 10.9mm round drive: Purpose-designed drive with ball detent for secure retention of the supplied spoke inserts. • 9 flat spoke head inserts: Includes 5.1, 5.6, 5.8, 6.1, 6.3, 6.5, 6.7, 6.8 and 6.9mm sizes. • Spline head insert: Adds compatibility with suitable spline-type spoke nipples. • Mechanical click: Gives audible and tactile indication when the preset torque is reached. • Laser-engraved scale: Provides durable torque-setting markings in Nm. • Auto-locking collar: Helps secure the selected torque value after adjustment. • Ergonomic grip: Designed for comfortable, controlled application of torque. • Anodized aluminium construction: Black and red aluminium handle and sleeve provide a professional finish. • Protective storage case: Keeps the torque wrench and all inserts organised and protected between jobs. Compatibility • 5.1mm spoke head: Supplied flat spoke head insert. • 5.6mm spoke head: Supplied flat spoke head insert. • 5.8mm spoke head: Supplied flat spoke head insert. • 6.1mm spoke head: Supplied flat spoke head insert. • 6.3mm spoke head: Supplied flat spoke head insert. • 6.5mm spoke head: Supplied flat spoke head insert. • 6.7mm spoke head: Supplied flat spoke head insert. • 6.8mm spoke head: Supplied flat spoke head insert. • 6.9mm spoke head: Supplied flat spoke head insert. • Spline spoke heads: Supplied spline head insert for suitable spline-type spoke nipples.
